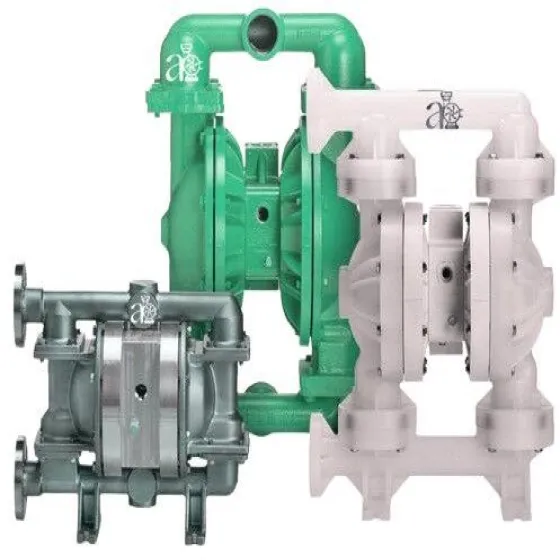

Material Polypropylene Double Diaphragm Pumps, Suction Size 2 Inch, Discharge Port 5080 mm BSP Threaded
Active
Premium
Key Highlights
₹ 19700.00
MOQ
1
Available Variants
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Air Tech |
| Material | Polypropylene |
| Model Name | 500 PF ATT |
| Power Source | Air |
| Suction Port | 50.80 mm BSP Threaded |
| Suction Size | 2 Inch |
| Discharge Port | 50.80 mm BSP Threaded |
| Discharge Size | 2 Inch |
| Air Exhaust Range | 3 To 4 BSP Threaded |
| Max Particle Size | 6.35 mm |
| Usage/Application | It is self priming & handling chemicals as well as water slurry very effectively |
| Air Inlet Pressure | 6 Kg CM2 |
| Max Flow Rate (LPM) | 350 LPM |
| Air Inlet Port Range | 3 To 8 BSP Threaded |
| Minimum Order Quantity | 50 |
| Max Suction Lift (Dry Condition) | 4.57 m |
| Max Suction Lift (Wet Condition) on | 7.62 m |
Product Description
Additional specifications provided pvdf ss, For pp 316max flow rate 270lpm 72gpm inlet with a specific port dimension 38. 10mm 11/2 bsp discharge 38. 10mm 11/2 BSP air intake 9. 64mm 3/8 12. 70mm bsp air outlet with 1/2 bsp suction capability dry 4. 57m 15 wet 7. 62m 25 teflon dry 3. 05m 10 wet 6. 09m 20 largest particle dimension dia 4. 76mm 0. 188
